The complete guide
How To Choose And Fit A Ceiling Curtain Track
The problem with hanging curtains across a wide opening
Rods are fine over a small window. Stretch one across a patio door or a 12 foot wall and things start to go wrong. The pole droops in the centre, the centre bracket blocks the rings, and closing the curtain becomes a two-handed job where you walk the fabric across in stages. On a room divider it is worse, because you are opening and closing it several times a day.
A ceiling track fixes the mechanics. Instead of one pole supported at two or three points, you get an aluminum channel screwed to the structure along its whole length. The weight is spread out. The curtain hangs from roller hooks that sit inside the channel, so nothing obstructs the path. One pull and the panel travels from end to end.
There is a second reason people choose a ceiling mount. Fabric that starts at the ceiling and falls to the floor makes a wall look taller. A rod that sits halfway up cuts the wall in two. It is a small change in hardware with a noticeable change in how the room reads.
How this track system works
This set covers a span of 9ft to 12ft, which is 108 inches to 144 inches. It does not arrive as one long bar. It comes as four separate sections that connect end to end, which is how a track this long gets into a box and up a stairwell without being bent in half.

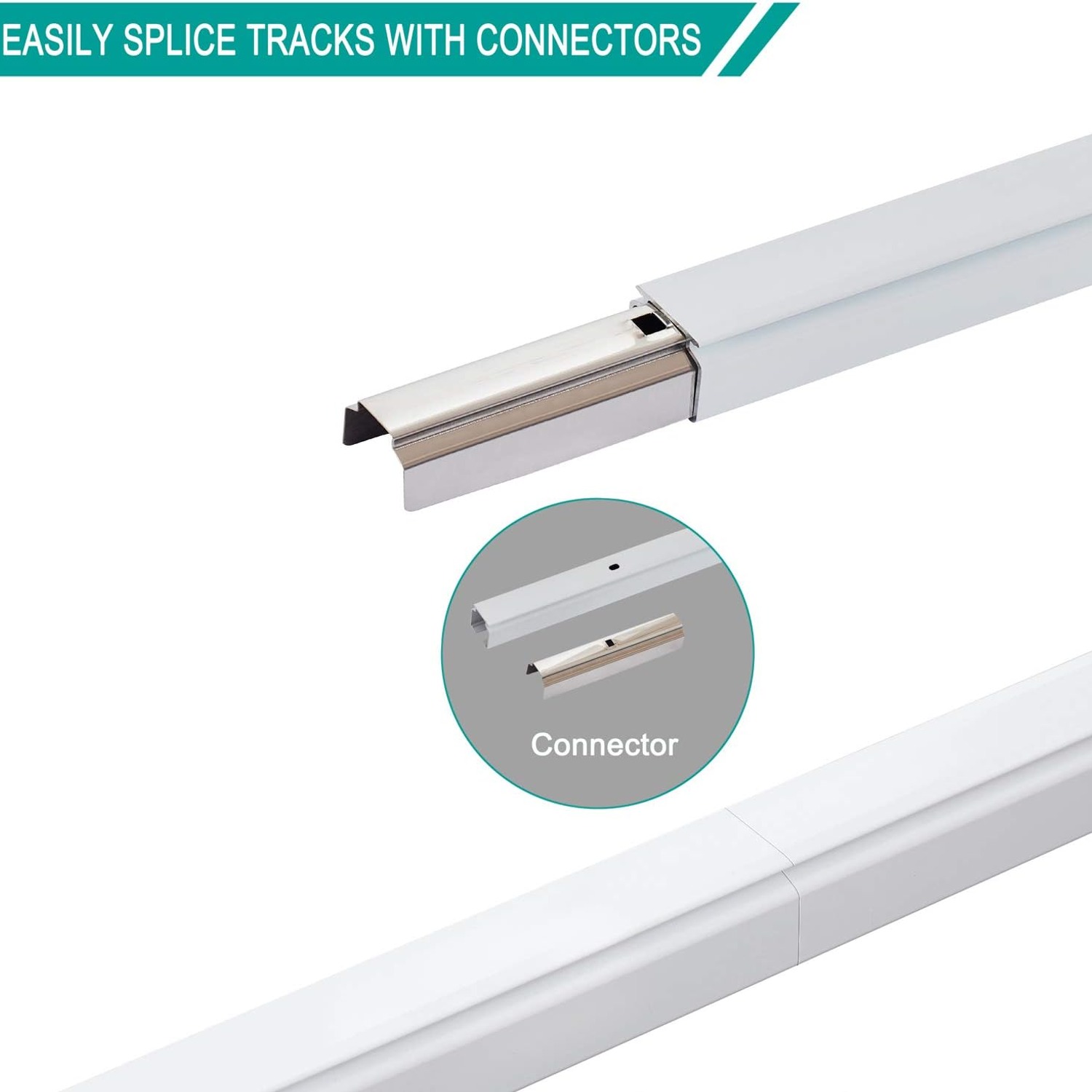

The sections join with stamped connectors. You build the run on the floor, work out how much extra you have, then shorten the last piece with the cutting saw that is included. That saw matters more than it sounds. Almost no opening is a round number of feet, and a track cut to the exact measurement looks like it belongs there. A track left long with a stub of rail hanging past the wall looks like a leftover.

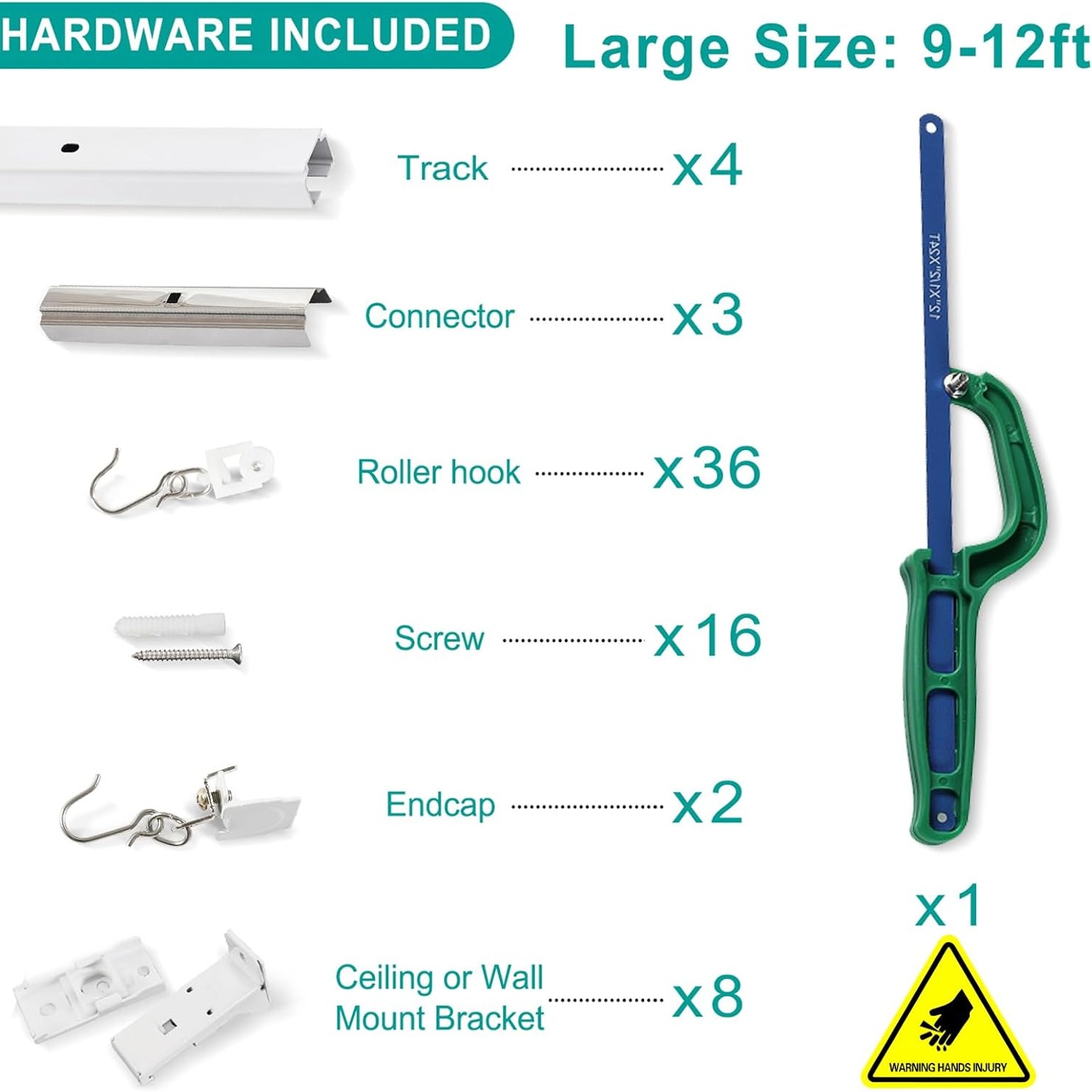

Brackets hold the rail to the structure. Both ceiling and wall brackets come in the kit, so you decide at install time rather than at checkout. Thirty-six roller hooks and two end hooks go inside the channel. The rollers carry the curtain. The end hooks pin the outer edges so the leading corners stay where you want them and the light gap at the side stays closed.
Maximum recommended load is 29 pounds. For most lined curtains over this width that is comfortable headroom. Very heavy blackout fabric or a thick divider panel across the full 12 feet is worth weighing before you commit.
Who this suits
Anyone with a sliding glass door. Patio doors are wide, they get used constantly, and a track handles that daily movement better than a rod does.
People splitting a room. A studio apartment, a shared kids bedroom, a home office carved out of a living room: run the rail across the ceiling and you get a partition you can open when you want the space back. It is the simplest version of a room divider curtain track, and it leaves no permanent change to the floor.
Renters, in a limited sense. You still have to drill, but the holes are small and they are in the ceiling where they are easy to fill. Check your lease first.
Anyone covering an awkward spot. A laundry alcove, a storage nook, an open shelving unit you would rather not look at. Fabric on a track hides it without building anything.
Nursery rooms are also on the list of suggested uses, and the logic there is simple. Hardware at ceiling level is out of a child's reach, and a blackout panel that hangs close to the wall blocks more morning light than a rod-mounted one.
Choosing the right length

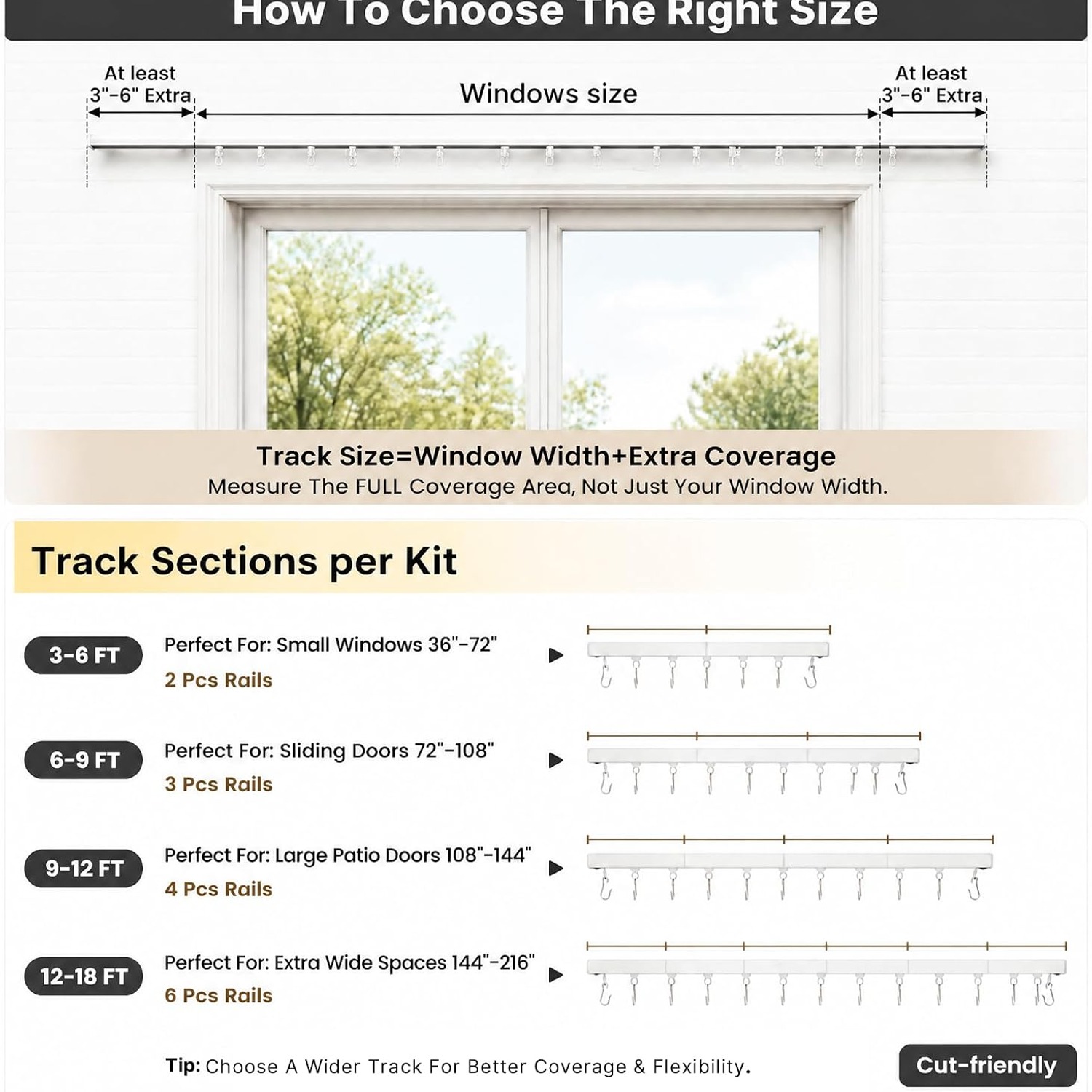

Measure the full width you want covered, wall to wall or frame edge to frame edge, and write the number down in inches. Then add a little past each side of a window so the curtain can stack back without blocking the glass. Something in the range of 6 to 12 inches per side is a common allowance, more if your curtain is thick.
That total is the length your track needs to reach. This set covers 108 to 144 inches. If your number falls inside that, this is your kit and you will be trimming the final section. If your number is well under 108 inches, a shorter set makes more sense than cutting away a large piece of rail.
Next, work out the curtain width. The track length is not the curtain width. For a curtain that still looks full when closed, most people order roughly 1.5 to 2 times the track length in total fabric width. Two panels of that combined width meeting in the middle is the standard arrangement for a sliding door.

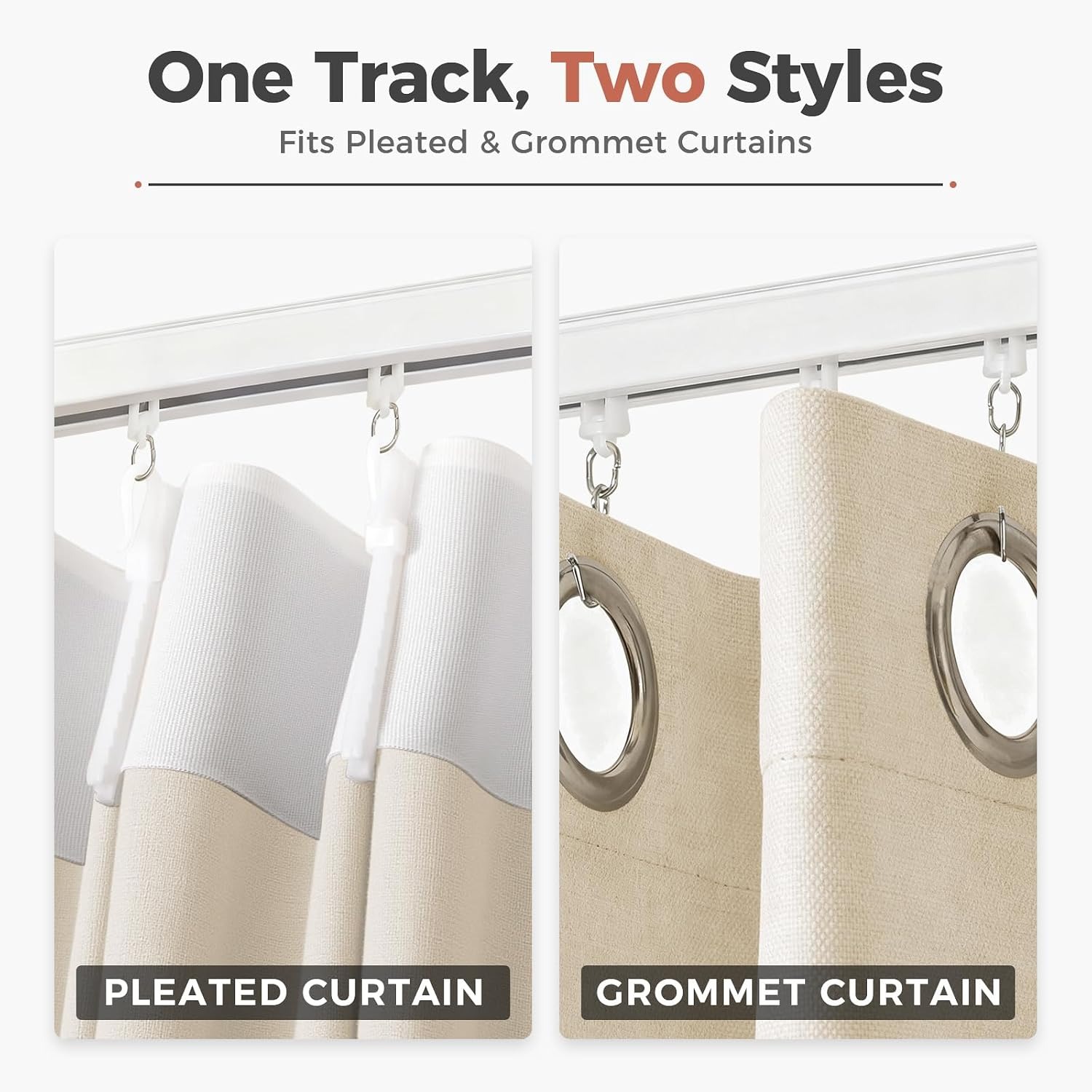

Finally, check your hooks against your heading. Pinch pleated drapes use one hook per pleat, and pleat spacing is usually somewhere around 5 to 8 inches. Grommet curtains need fewer. The 36 hooks supplied cover normal use at this width.
Getting the installation right
The install is not hard, but the marking is where people lose an hour. Find your joists before anything else. Screws into bare drywall will not hold a loaded track across 12 feet, and the failure happens weeks later rather than on day one. Use a stud finder, tap for the solid sound, or check the ceiling for existing fixing lines.
Mark the bracket positions along a straight line. Use a level or a chalk line rather than measuring down from the ceiling edge, since ceilings are rarely as straight as they look. Put a bracket close to each join between sections so no connector is left unsupported.
Cut before you mount. Trimming a section while it is in your hands on a workbench is simple. Trimming one already screwed overhead is not.
Have a second person hold one end. A 12 foot rail is light but awkward, and holding it level with one hand while driving a screw with the other is how brackets end up crooked.
Hang the curtain last. Load the roller hooks into the channel, fit the end stops, then attach the fabric and check the glide along the full run before you hang the second panel.
Keeping it running smoothly
Maintenance is light. Wipe the rail with a soft dry cloth now and then. If it needs more, a barely damp cloth is enough, dried straight after. Stay away from abrasive pads and solvent cleaners so the white finish does not go patchy.
If the glide gets sticky, the cause is nearly always dust in the channel rather than worn hooks. Slide the hooks out, run a cloth through the track, put them back. Do not add oil or lubricant spray. It feels better for a week and then collects grit, which is worse than where you started.
Check the bracket screws once or twice a year. Fixings in timber can work slightly loose as the material moves with the seasons. A quarter turn with a screwdriver is all it usually takes.
The short version
This is a white aluminum rail system for openings between 9 and 12 feet wide. Four sections connect together, a saw is included so you can cut to the exact size, and both ceiling and wall brackets are in the box. Thirty-six roller hooks and two end hooks carry grommet or pinch pleated drapes up to a recommended 29 pounds.
It is straight, so bay windows and corners are out. Curtains are sold separately. Measure your opening, allow for stack-back, find your joists, and cut once. Do those four things and the rest of the job is straightforward.
